PCB manufacturing

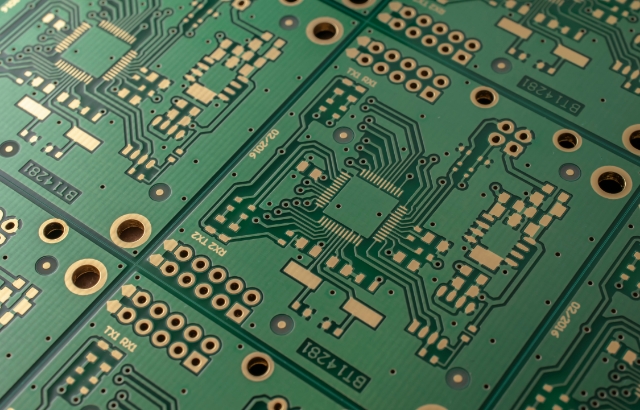

General PTH PCBs

Single-sided/Double sided/multilayer PTH PCBs

This is a type of PCB that is widely used in the design of electronic circuits.
It is extremely versatile and is used in a wide range of applications, from single-layer to multilayer structure with additional wiring layers according to the use.

Features

  • Single-sided, double-sided and multi-layer structures are possible. A wide variety of uses are possible, from thin to thick boards.
  • We can handle a variety of hole types, such as TH, NTH and IVH.
  • We can manufacture boards in the shape you want, such as square, rectangular or irregular.

KYODEN’s Strengths

  • We have total in-house production capability and ability to manufacture at all plants.
  • A wide range of substrates is in stock at all times, and we have a proven track record from prototyping to mass production.
  • We can deliver double-sided PCBs in 2 days, and even 4-layer PCBs in 2 days (Miracle). Delivery is possible in an overwhelmingly quick delivery.
  • We are promoting high quality through factory automation, such as the introduction of automated layup (Nagano Plant).
  • We can propose manufacturing that matches your costs, from router processing to die handling.
  • We can handle domestically as well as out-in from overseas (Thailand Plant).

Main product uses

  • Household electrical appliances (televisions, air conditioners, refrigerators, etc.)
  • Electronic devices (cameras, audio equipment, consumer electronics, etc.)
  • Lighting equipment
  • Automobile control units
  • Industrial equipment
  • Medical equipment
